Blackmagic PYXIS Monitor Kit
Blackmagic PYXIS Monitor Kit
The Blackmagic PYXIS Monitor is a 5-inch HDR touchscreen display with a full 1920 x 1080 resolution. It features an LCD capacitive touchscreen and a brightness of 1500 nits, with frame rates of up to 60fps. The monitor also includes a rear-facing LED tally light and an accelerometer that automatically rotates the image when mounted upside down. It uses a USB-C with locking connector for video, power, data, and software updates.
The Blackmagic PYXIS Monitor Kit comes with the monitor, a foldable sunshade, a locking USB cable, and PYXIS Mounts for attaching to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The mount is designed with a dovetail for easy attachment and removal without the need for tools. The monitor also has on-screen and button controls, as well as multiple mounting points and is compatible with various Blackmagic cameras.
Blackmagic PYXIS Monitor is a versatile 5" HDR touchscreen monitor with full camera control that can be mounted almost anywhere. Blackmagic PYXIS Monitor Kit contains the monitor, foldable sunshade, locking USB cable and PYXIS Mounts to attach to Blackmagic PYXIS and Blackmagic URSA Cine cameras. The design of the PYXIS Mounts with a dovetail means the PYXIS Monitor can be quickly attached and removed from the camera. The mount makes it simple to position the monitor where customers need it without requiring tools to loosen bolts.
Control
On Screen Controls
Tap screen to control Monitor Overlays,
Frame Rate, Shutter, Iris, Timecode,
ISO, White Balance, Tint, Power,
Record Start/Stop, Media, Audio,
Focus Zoom, Digital Slate and camera menus.
Button Controls
Includes F1, F2, F3 assignable function buttons to recall preset parameters or toggle functions.
Function Button Presets
FPS: Preset Value
Iris: Preset Value
WB: Preset Value
ISO: Preset Value
Shutter: Preset Value
Function Button Toggle
Clean Feed
Status Text
Display LUT
Frame Guides
Focus Assist
False Colour
Zebra
Grid
Safe Area Guide
Off Speed Rec
Focus Zoom
Focus
Record
Auto White Balance
Colour Bars
Playback
False Colour + Zebra
OIS
Stream
Still
Mounting Points
1/4-20 bottom mounting point with ARRI locating pin pattern.
M4 bottom mounting points.
1/4-20 side mounting point with ARRI locating pin pattern.
M4 side mounting points.
Compatible Cameras
Blackmagic PYXIS 6K
Blackmagic PYXIS 6K PL
Blackmagic PYXIS 6K EF
Blackmagic URSA Cine 12K LF
Blackmagic URSA Cine 17K 65
Key Features:
5-inch Display Size
Full 1920 x 1080 Resolution
LCD Capacitive Touchscreen
1500 nits Brightness
Up to 60fps Frame Rates
Rear-facing LED Tally Light
Auto Image Rotation with Accelerometer
USB-C with Locking Connector for Video, Power, and Updates

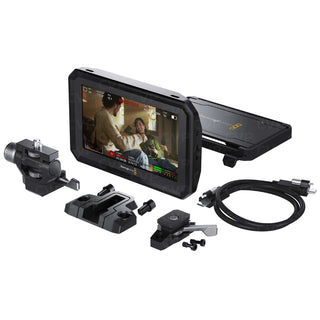

What's in the Box:
Blackmagic PYXIS Monitor Kit
Blackmagic PYXIS Clip On Sunshade
Blackmagic PYXIS Monitor Swivel Mount
Blackmagic PYXIS Monitor Fixed Mount and screws
Blackmagic PYXIS Monitor Dovetail Shoe and screws
USB-C Viewfinder Cable
Welcome wallet with QR code for software download
Blackmagic Design Sticker
