Portkeys HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
Portkeys HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
View your video capture with 3D LUT output using the HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support from PORTKEYS. This monitor features support for up to DCI 4K24 video, 1920 x 1200 resolution, 10-bit colour, and 3D LUT output on both the 4K HDMI and 3G/HD/SD-SDI outputs. Its 1100 cd/m² brightness is high enough for exterior viewing, and the wide viewing angles of 178° make it easy for multiple crew members to watch the footage simultaneously. The rear of the monitor sports a detachable cover for a video transmitter and dual Sony L-series/NP-F battery plates.

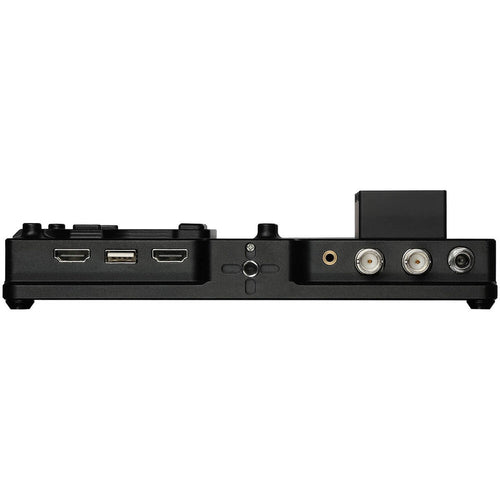

HDMI and 3G-SDI Input/Output
4K HDMI and 3G/HD/SD-SDI inputs, both with loop-through outputs
3D LUT Support
3D LUTs for colour grading and monitoring can be applied to both the HDMI and SDI outputs
Hi-Bright Monitor
8" on-camera monitor with 1100 cd/m² brightness and 1000:1 contrast ratio
Durable Housing
Rugged, heat-dissipating CNC-machined aluminium alloy housing
Top and bottom 1/4"-20 thread mounts

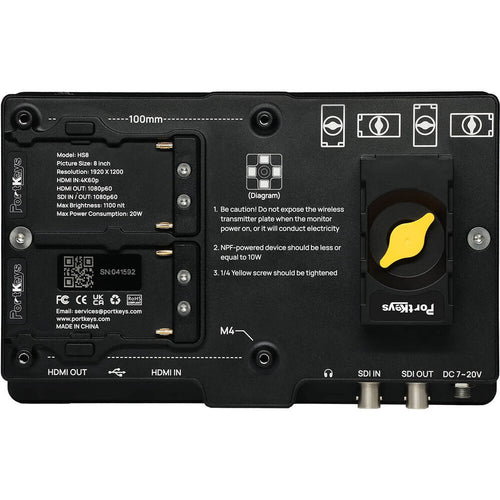

Hot-Swappable Battery Plates
Hot-swappable, dual Sony L-series-type battery plates
DC input port for power supply
Optional Wireless Video Transmitter
Comes with a detachable cover for the wireless video transmitter mount
Key Features:
8" HDMI & 3G-SDI 1920 x 1200 Monitor
Supports up to DCI 4K24 Input
1100 cd/m² Bright, 1000:1 Contrast Ratio
10-Bit Colour, 3D LUT Out on HDMI & SDI
4K HDMI/3G-SDI Input & Loop-Out
HDMI to SDI & SDI to HDMI Conversion
Heat-Dissipating Aluminium Housing
Peaking, Histogram, Waveform, Zebra
Mount for Select Video Transmitters
Dual L-Series Battery Plates & DC Port
What's in the Box:
Portkeys HS8 8" 3G-SDI 4K HDMI/3G-SDI High-Bright Monitor with 3D LUT Support
D-Tap to DC Barrel Power Cable
Screen Cleaning Cloth
M2 Allen Key
M3 Allen Screw
Cup Head Gasket
Micro-USB Flash Drive
