Blackmagic Streaming Encoder 4K

The powerful, self-contained Blackmagic Design Streaming Encoder 4K streams H.264 or H.265 via SRT or RTMP with direct streaming support for a wide range of compatible services and software, including Facebook, Twitch, YouTube, Twitter, Restream.IO, Vimeo, BoxCast, Castr, AfreecaTV, Bilibili, DouYu, Weibo, Zoom, Skype, Microsoft Teams, QuickTime Player, FaceTime, OBS Studio, Open Broadcaster, VLC, Wirecast Play, and Wowza Streaming Engine. Users may stream via the built-in RJ45 Ethernet port with support for 10/100/1000BASE-T or connect via USB-C to tether to high-speed 5G and 4G phones.

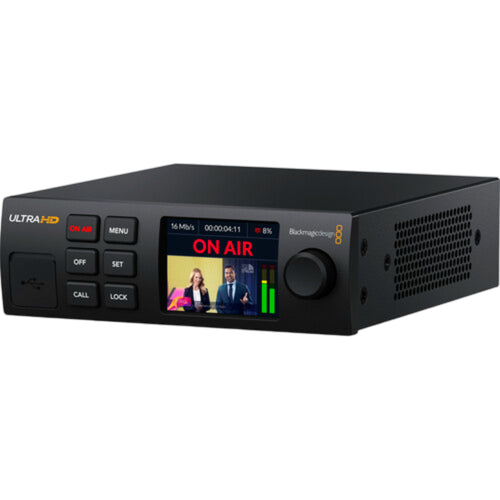

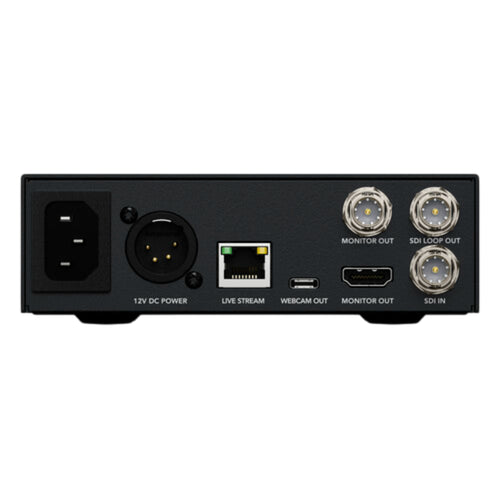

The encoder is equipped with 12G-SDI connectivity, supporting resolutions up to DCI 4K60 via an SDI input and an SDI loop output. The unit also features SDI and HDMI monitor outputs. Video, audio, status, and menu settings may be monitored via the integrated 2.2" LCD screen. There is also an option to connect the device as a webcam to a computer via its rear-panel USB-C port. The front panel features six buttons and a spin knob for tactile control, and the unit may be powered via its rear 100-240 VAC and 12 VDC 4-pin XLR ports.

Key Features:

H.264 & H.265 Streaming to SRT or RTMP

12G-SDI Input & Loop Output

DCI 4K Streaming up to 60 fps

Ethernet 10/100/1000BASE-T Support

SDI & HDMI Monitor Outputs

Integrated 2.2" LCD Screen

USB-C for Phone Tethering & Webcam Out

Tethers to 4G & 5G Phones for Streaming

Front Panel Buttons & Spin Knob

100-240 VAC & 12 VDC Power Inputs

What's in the Box:

Blackmagic Streaming Encoder 4K

Welcome Wallet with QR Code for Software Download
