Wooden Camera UVF v2 NATO Rail Kit

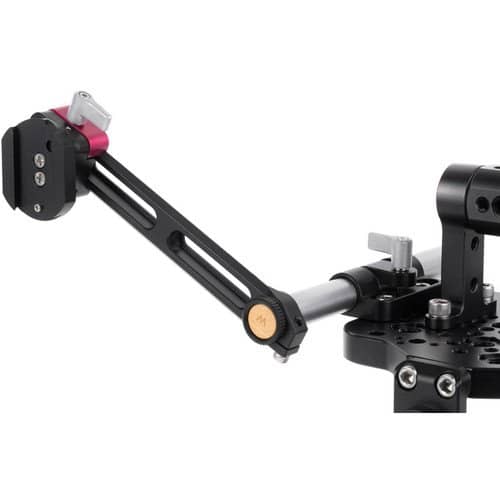

The Wooden Camera UVF NATO Rail Kit enables you to attach and adjust a viewfinder on a rig. You would just need to incorporate an optional mounting bracket for the viewfinder. The NATO rail of the kit features industry-standard dimensions, so any NATO-compatible bracket will fit. Alternatively, you can look into Wooden Camera's "UVF Mount V2 NATO Rail Kit", which comes ready with a bracket. The bracket is called the "UVF V2 Sled" and is compatible with most viewfinders including Alphatron, Cineroid, RED, SmallHD, and Zacuto.

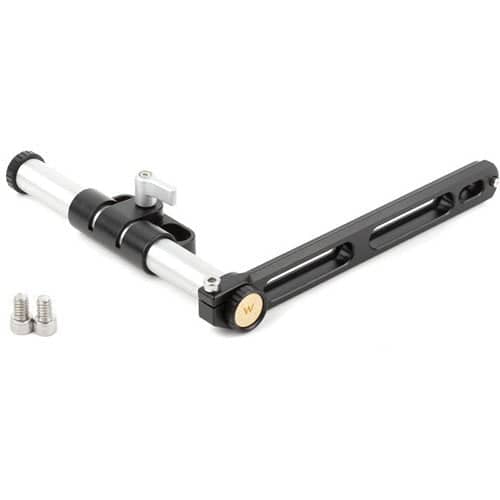

The NATO rail, a 15mm tube clamp, and a 15mm rod are the parts of the kit. The clamp attaches to two 1/4" threads spaced between 25 and 36mm apart and it holds the rod. And the NATO rail connects onto to the rod. A safety pin at the end of the rail will prevent the accidental removal of any viewfinder mounting bracket you attach.

Three Points of Adjustment

Rod rotates inside the clamp

Rod adjusts horizontally along with the clamp

Optional viewfinder mounting bracket tilts on NATO rail
