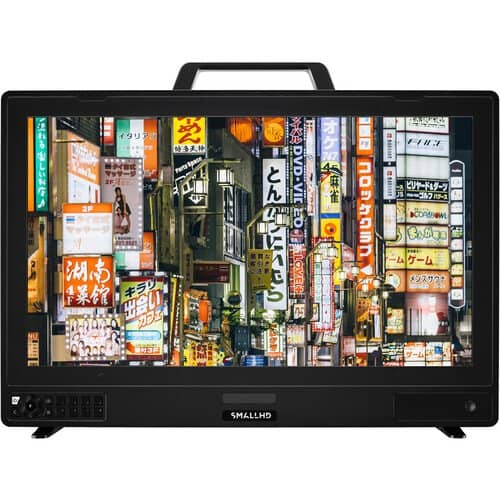

SmallHD Cine 24" 4K High-Bright Monitor

Add a professional UHD 4K monitor to your studio with the Cine 24" 4K High Bright Pro Monitor from SmallHD. Featuring the updated SmallHD OS4.1, the monitor provides a crisp image with 10-bit DCI-P3 colour intelligence, 1350 cd/m² brightness, and a 1000:1 contrast ratio.

The monitor features four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs, as well as one HDMI 2.0 input and one HDMI 2.0 output. All functionality of the monitor is accessed via the innovative Page Builder in OS4.1 that features a fully redesigned UI, pre-configured pages, and page tabs. Other monitoring features include a calibration wizard, false colour overlays, waveform, pixel zoom, focus assist, peaking, and improved function buttons. Additional functions with updates of OS4.1 will include dual and quad view and 4K waveforms and scopes with regions of interest.

The monitor can be mounted using the 110mm VESA pattern on the back or by thirty-six 1/4"-20 threads around the top and sides of the monitor. You can power the monitor using a 3-pin XLR input or by a separately available dual V-mount or Gold mount battery plate, and they are hot-swappable. You can also power peripherals from the monitor using the two 2-pin LEMO-type outputs, the two USB Type-A outputs, or the one USB Type-C output.

Data inputs and output can be performed using the SD card slot to load 3D LUTs, and the monitor also features an RJ45 Ethernet port and an RJ45 GPI port for additional data and configuration. There is a 3.5mm headphone output to monitor the embedded audio.

The monitor includes numerous accessories such as an acrylic screen protector, a 3' long HDMI cable, two 1/4"-20 cheese-style accessory mounting sticks, two 1/4"-20 and 3/8"-16 cheese-style accessory mounting sticks, monitor feet, a monitor handle, a 3-pin XLR power supply, an 8GB SD card, and a microfiber cleaning cloth.

Features

24" UHD 4K monitor

1000:1 contrast ratio

1350 cd/m² brightness

Four 12G/6G/3G/HD-SDI inputs and four 12G/6G/3G/HD-SDI outputs

One HDMI 2.0 input and one HDMI 2.0 output

SD card slot for 3D LUTs

One RJ45 Ethernet port

One RJ45 GPI port

110mm VESA mounting on the back

Thirty-six 1/4"-20 mounting threads on top and sides

Smart rail mounting options

1/4"-20 and 3/8"-16 cheese-style mounting sticks included

SmallHD OS4.1

Internal calibration wizard

Colour pipe colour-space formatting

Settings dashboard for easy access to common settings

Preconfigured pages

Page tabs

Customizable false-colour overlays

Customizable 4K waveform with region-of-interest highlighting

Improved function buttons

Pixel zoom, focus assist, peaking

Total UI overhaul

Power Options

One 3-pin XLR 12 to 24V, 12A input

Two 2-pin LEMO 12V, 2A outputs

Two USB Type-A 5V, 2.4A outputs

Two USB Type-C 5V, 1.5A outputs

Separately available V-mount or Gold mount battery plates

XLR and battery options are hot-swappable
